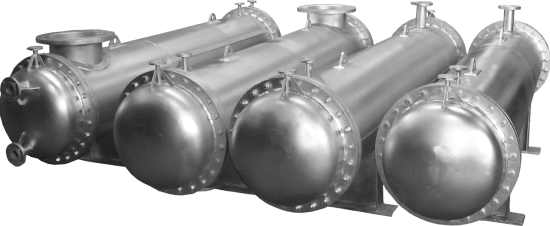

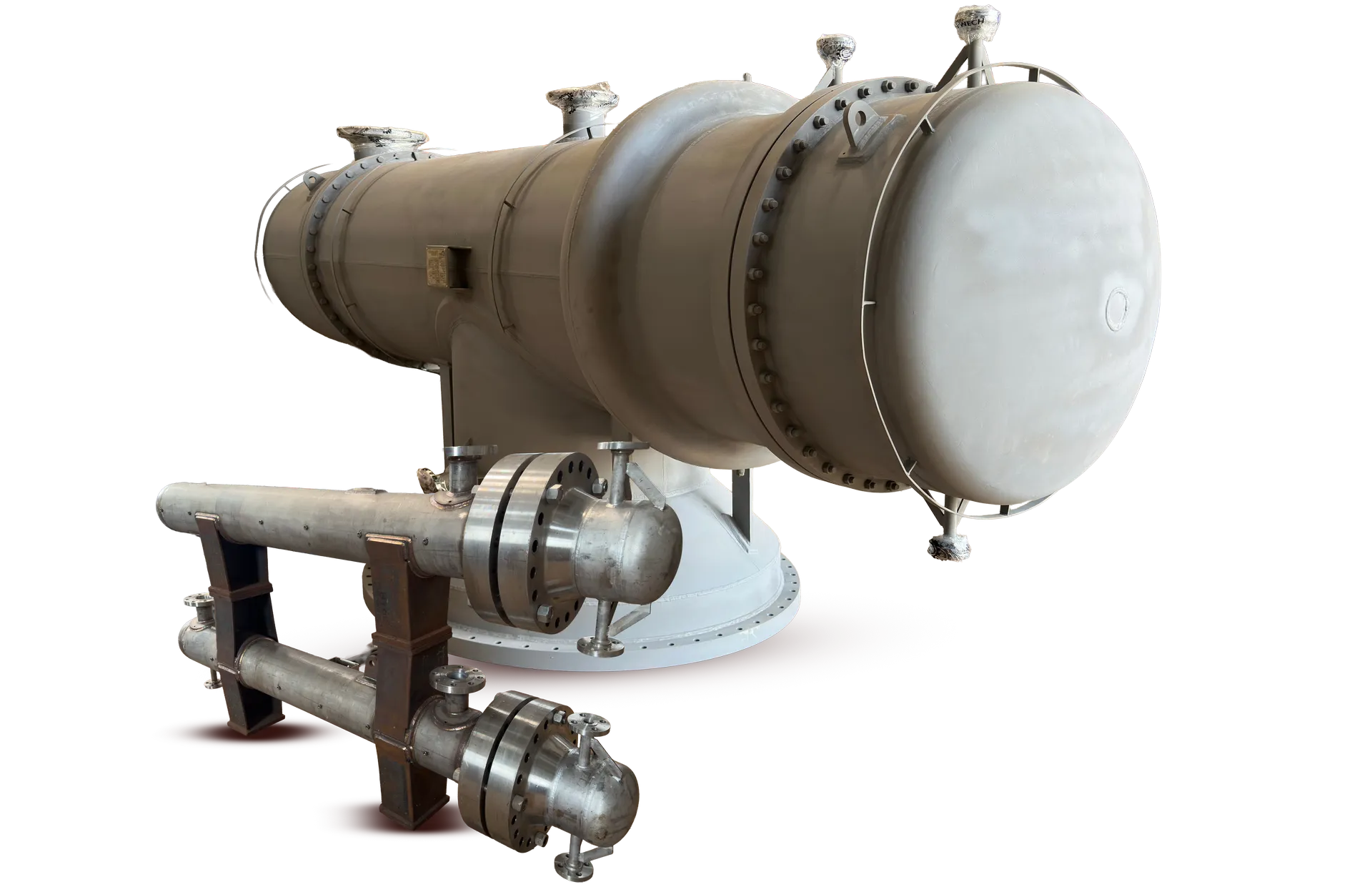

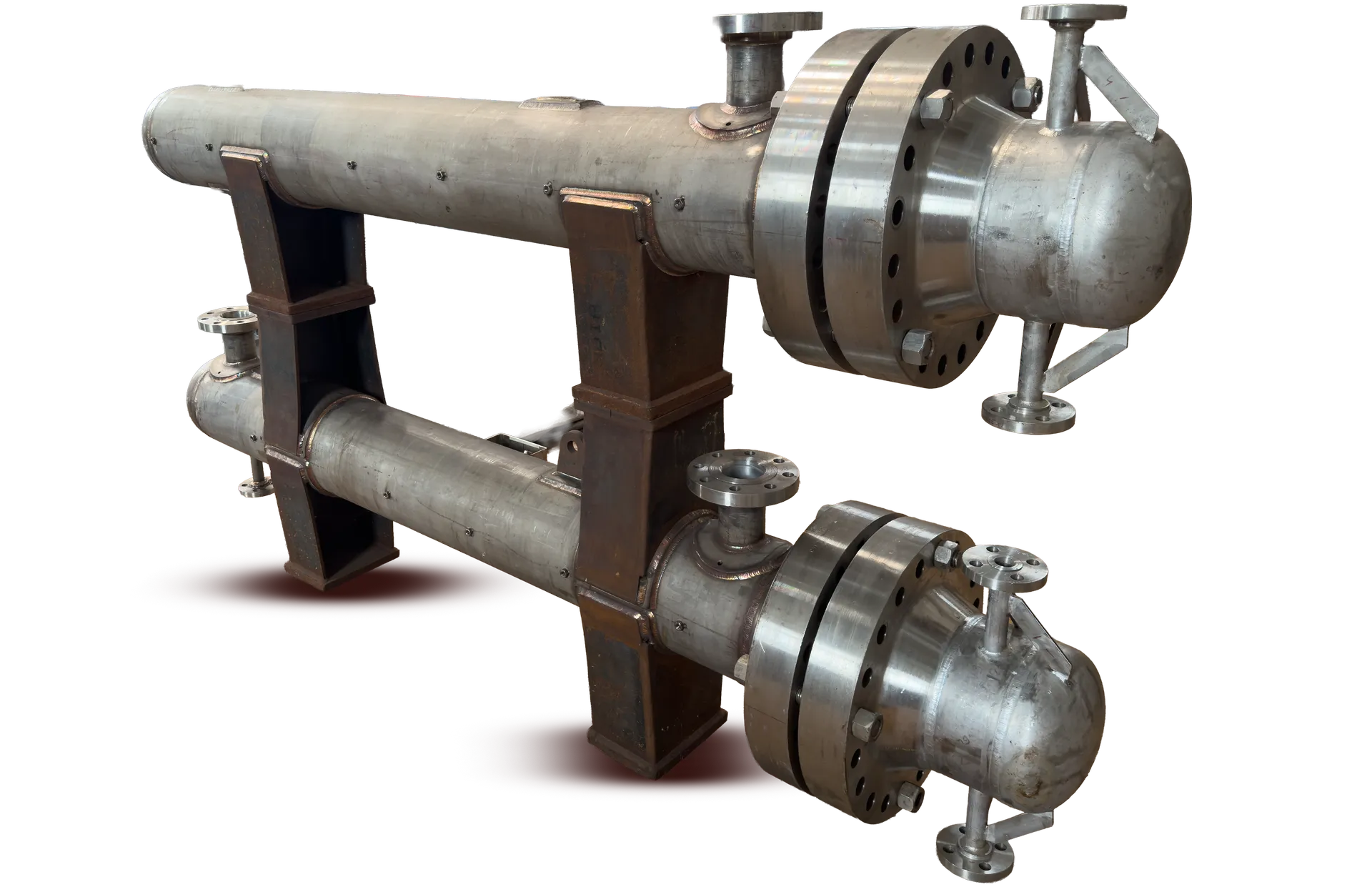

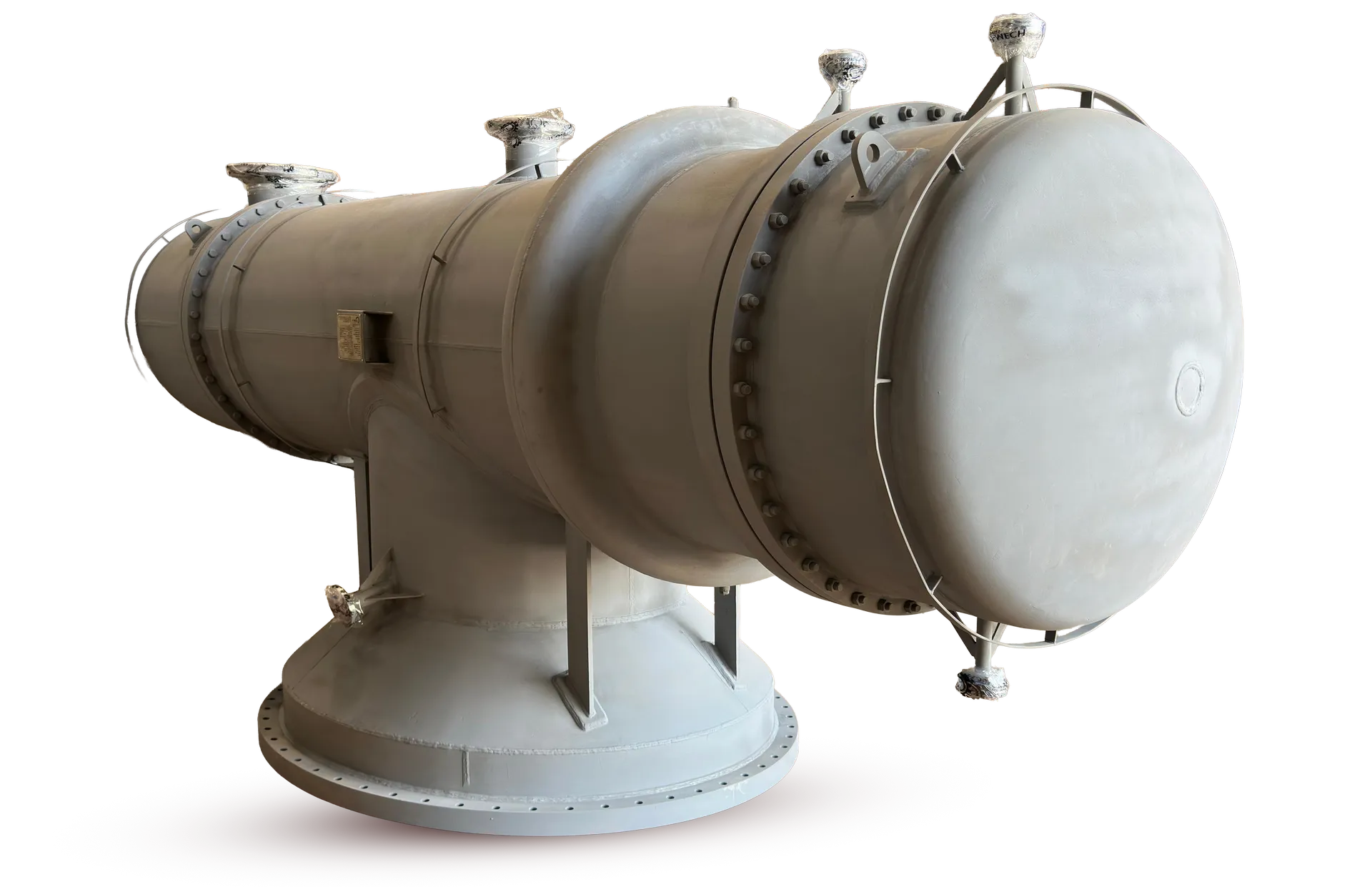

Uni-Mech designs (Thermal and Mechanical) and manufactures a complete range of Shell and Tube Heat Exchangers for cooling, condensing and heating application in fixed tube sheets type, floating head or removable "U" tube bundle type to suit different process conditions and to specific requirement of customer. Uni-Mech designs are as perdesign Code IS-2825, AMSE SEC. VIII, TEMA, API-660 etc.
- Condensers
- Fixed Tube Sheet
- Falling Film Evaporators
- Removable tube Bundle
- Re-boilers
- Coil in Tank
- Finned Tube
- Heat Exchangers without phase transition
- U-Tube
- Coolers and pre heaters for liquids and gases
- Capacity Range: 250 Ltr to 100KL
- Shell Diameter: up to 5000 MM
- Pressure Range: up to 120Kg/cm2(g)
- Temperature Range: -80°C to 350 °C
- Different Grades of Stainless Steel (SS304/SS316/SS316L/SS316Ti/SS317/SS321/SS904L)
- Duplex & Super Duplex Stainless Steel
- Copper
- Hastelloy - C (C22/C276)
- Titanium
- Monel 400
- Carbon Steel (CS/LTCS)
