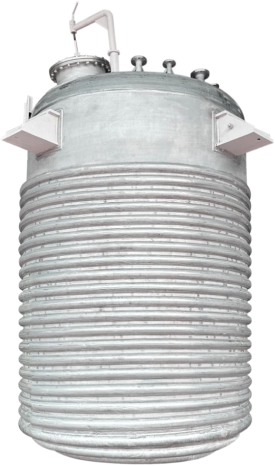

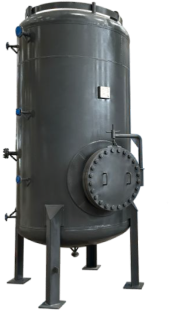

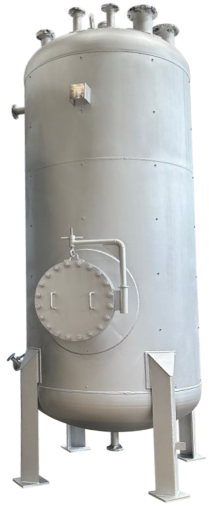

Pressure Vessels and Air Receivers are closed containers designed to hold gases or liquids at a desired pressure. Uni Mech has more than Three Decades of experience in manufacturing of Pressure Vessels, Ari Receivers and other Heavy Engineering Equipment for Various Process industries like Oil & Gas, Refinery, Fertilizer, Petrochemical, Pharmaceutical and Chemical Industries. Chemical cleaning is done internal& external to remove contamination. UNI-MECH can design vessel as per its client's needs, including Pressure Vessels, knock-out drums, receivers, hold-up vessels, de-aerators, and so on. The pressure vessels can be jacketed, Limpet Coil and/or have internal coils, as required by the client. Heat Treatment of pressure vessels is arranged by engaging third-party agencies at our shop site.
Our State of the Art Manufacturing Facility at Chacharwadi, Ahmedabad having area of more than 13000 Sqyards and having separate Manufacturing facility for Stainless Steel & Carbon Steel. We have ability of processing almost 2000MTof Equipment every year. We have equipment handling capacity of100 Tons.
Max Pressure: up to 120Kg/cm2(g)
Length: up to 60Mtr
Capacity: Up to 250KL
Diameter: up to 5000mm
Weight: up to 200Ton
Thickness: up to 100mm Thk
- ASMESECVIIIDIV1
- ASMESECVIII DIV2
- IBR/IS0931
- PED
- PD5500
We can provide complete design and analysis of Pressure Vessel, Fatigue Analysis, Finite Element Analysis, Nozzle Load analysis and Stress Reports either in-house orby engaging reputed design consultants.
- Different Grades of Stainless Steel (SS304/SS316/SS316L/SS316Ti/SS317/SS321/SS904L)
- Duplex and Super Duplex Stainless Steel
- Hastelloy-C(C22/C276)
- Titanium
- Monel 400
- Carbon Steel (CS/LTCS)
- Clad Material
- Aluminium
- Nickel Alloys
- Lined with special non corrosive material like PFA, TEFZEL, HALAR, Rubber lining, etc.
- We have in-house well trained quality team to implement pre-agreed hold points as well as initiate the in-process and final inspections so that all requirements of the code are met or exceeded.
- Our Quality & Welding Engineers have developed Welding Procedures for an extended metallurgy-process matrix. We deptoy SMAW, SAW, FCAW, GTAW, GMAW processes and have handled different metallurgies.
- We engage all reputed third-party inspection agencies to provide the inspection services.
- Our facility is equipped with a major required Testing Machine, Ultrasonic Testing, Tensile Testing, Hardness test, Impact Testing Machine, Radiography, DP Testing, PMI,, Bend test, Optical Measurement such as Laser telescope, Remote temperature measurement, Surface Roughness Tester, Paint DFTTesting, etc.
